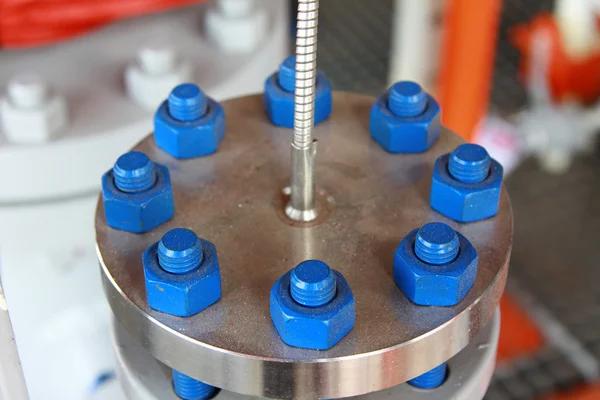

Oil & Gas Flange Stud Bolts: ASME B16.5 Selection & Specification Guide

---

Introduction: The Bolt That Holds the Plant Together

A flanged joint is only as reliable as the stud bolts that hold it closed. In a process plant, a single failed stud means a leak, a shutdown, and an inspection finding. That is why EPC contractors and operators in the Middle East and beyond specify flange bolting in detail — and why a fastener supplier's ability to deliver a complete, documented, and traceable stud-bolt package is a genuine procurement skill.

This guide walks through the selection and specification of flange stud bolts to ASME B16.5 practice: material grades, thread forms, length calculation, preload, and the paperwork that makes a delivery acceptable to QA/QC.

Section 1: What "ASME B16.5 Bolting" Actually Means

ASME B16.5 is the flange standard: it defines flange dimensions, pressure-temperature ratings, and facing types for flanges up to 24 inches. It also carries a small but important table of recommended bolting — but the table is a minimum, not a design.

What buyers actually specify is the combination of:

• Flange standard: ASME B16.5 for NPS 1/2 through 24; ASME B16.47 for larger diameters.
• Material: most commonly ASTM A193 B7 for carbon-steel flanges in general service, with B16, L7, B8M, and corrosion-resistant grades for specific services.
• Thread form: UNC (unified coarse) in smaller sizes; 8UN constant-pitch threads for studs above 1 inch in diameter, which is the established bolting practice for ASME B16.5 flanges in refinery and gas service.
• Class of fit: Class 2A threads on the stud, Class 2B in the nut.
• Nuts: ASTM A194 (2H for B7, 8/8M for stainless, 7/7M for L7), heavy hex pattern.
• Washers: typically not used under stud-bolt nuts except where required by the joint design.

If the purchase order only says "B16.5 stud bolts, B7, 1-1/8 inch", there is not enough information to manufacture, inspect, or document the part correctly. The full specification must include thread form, fit class, length, coating, hardness limit, and test requirements.

Section 2: Material Selection for the Service

The material grade follows the service environment, not the flange size:

Rules that avoid most specification errors:

• Never mix hardness-controlled and standard grades. B7M is not "softened B7" — it is B7 manufactured with a hardness ceiling (typically ≤ 22 HRC) and is normally specified where the service is sour. Using B7M in non-sour service is rarely beneficial; using B7 in sour service risks sulfide stress cracking.
• Match the nut to the stud. A194 nut material must be compatible with the stud grade and with the hardness limits of the service.
• State the standard edition. A193/B16.5 specifications are updated; the PO should reference the edition in force at contract date, or "latest edition" if the project allows it.

Section 3: Thread Form — the Detail That Causes Rejections

The single most common rejection reason on flange studs is the wrong thread specification:

• Studs 1 inch and below: UNC threads (e.g., 3/4"-10 UNC).
• Studs above 1 inch: 8UN — an 8-pitch constant-pitch thread series. The designation is written as diameter-8UN (e.g., 1-1/8"-8UN, 1-1/4"-8UN), where "8" means 8 threads per inch regardless of diameter.

Why 8UN exists: coarse-pitch threads at large diameters lose engagement accuracy and make preload control less consistent; fine threads risk cross-threading and galling in heavy, field-assembled joints. 8UN provides a robust, consistent thread form for diameters above 1 inch and is commonly used for ASME B16.5 flanges in refinery and gas service.

Other thread rules that matter:

• Thread fit: Class 2A external, Class 2B internal. Do not specify Class 3 for general bolting — it adds cost and offers no benefit in a flanged joint.
• Thread length on studs: both ends must be threaded, each long enough to fully engage the nut and any appurtenances; the unthreaded portion equals the grip length. The exact "threaded length" is defined in the stud standard (e.g., ASME B18.31.2) and should be stated.
• Galling control: for stainless and duplex studs, specify a suitable anti-seize/lubricant treatment as part of the coating or assembly requirement, and confirm the thread finish.

Section 4: Length Calculation That Works

The stud length must cover:

• Flange thickness (total, both flanges or flange + companion)
• Gasket thickness
• Nut height (two nuts for full studs — standard flange bolting uses a nut at each end)
• Two to three threads of protrusion past each nut (typically ≥ 1.5 threads)

Formula (for through-stud with nuts at both ends, length defined per ASME B18.31.2 — measured point-to-point / first thread to first thread, excluding the chamfer points):

L ≈ 2 × flange thickness + gasket thickness + 2 × nut height + allowance

Allowance is typically 10–15 mm total for medium sizes, or 1.5–2 × thread pitch per end. When the bolt load is the design variable (as in ASME B16.5 Appendix calculations), length itself is fixed by geometry — but the grade and preload must satisfy the required bolt load for the flange rating.

Specify the length in the PO as "stud length measured overall" and confirm it against the flange dimensions before manufacturing. A drawing or a flange data sheet with the exact joint dimensions removes the most common field mismatch.

Section 5: Coating and Corrosion Protection

Coating choice depends on service and on the alloy:

• B7 / B16 carbon-alloy studs: typically plain (oil-dipped), zinc-plated, or PTFE / zinc-flake coated, depending on the environment and the project's bolting specification. Zinc plating on B7M or sour-service studs is restricted — hydrogen embrittlement risk and coating chemistry must be reviewed against the service requirements.
• PTFE / fluoropolymer coatings (e.g., "xylan-type" or PTFE-filled coatings): reduce friction scatter, improve preload consistency, and provide corrosion resistance. Coating thickness typically 25–75 µm; the friction coefficient must be stated and controlled, because it directly affects torque-preload mapping.
• Zinc flake (e.g., ISO 10683): thin-film sacrificial coating, increasingly specified on high-strength fasteners to reduce hydrogen embrittlement risk compared with electroplating.
• Stainless, duplex, nickel alloys: no galvanic coating needed; may be supplied clean, passivated, or with an anti-seize treatment.

For sour service, the coating must not introduce a galvanic couple that promotes localized corrosion, and the hardness limit applies to the base material after any heat treatment used in coating processes.

Section 6: Preload, Torque, and the QA/QC Documentation Package

Flange joint integrity depends on achieving the correct preload, not just on the bolt size:

• Preload target: typically 50–70% of the stud's proof or yield strength at assembly, per the joint design.
• Torque vs. tension: torque control is the field standard, but friction scatter (coefficient of friction 0.08–0.16 depending on coating and lubricant) means torque-preload accuracy is limited; where preload is critical, hydraulic tensioning or torque + tension verification is used.
• Lubrication: the specified lubricant and friction coefficient must match the torque tables used in the field.

The documentation package that passes EPC and third-party inspection:

• Material test certificates to EN 10204 3.1 (or 3.2 where required) with heat numbers
• Heat treatment records where applicable
• Hardness test reports — including proof that any hardness limit (e.g., B7M ≤ 22 HRC) is met on the delivered lot
• Tensile / yield / elongation test data per the material standard
• Thread gauging records (ring gauge for external threads, plug gauge for nuts)
• Coating thickness and friction test data where coated fasteners are supplied
• Lot traceability from raw material to finished stud, marked on boxes and, where required, on the parts

A good supplier presents this package without being asked and confirms the acceptance criteria before manufacturing, not at inspection.

Section 7: Procurement Checklist for Flange Stud Bolts

Use this list when you send the inquiry:

• Flange standard and rating (e.g., ASME B16.5 Class 600 RF)
• Stud size, thread form, and fit (e.g., 1-1/8"-8UN, Class 2A)
• Stud length, measured overall, and the joint dimensions it is based on
• Material grade + standard edition (e.g., A193 B7, latest edition)
• Nut grade and pattern (e.g., A194 2H heavy hex)
• Hardness limits and any NACE MR0175 / ISO 15156 requirement
• Coating or lubricant, with friction coefficient if torque-controlled
• Test and documentation requirements (3.1 MTCs, hardness, tensile, gauging)
• Marking and traceability requirements
• Quantity, packaging, and delivery terms

---

FAQ

Q1: Why are stud bolts above 1 inch specified with 8UN threads? 8UN is a constant-pitch thread (8 threads per inch at any diameter) used as standard bolting practice for ASME B16.5 flanges above 1 inch. It gives a robust engagement and consistent preload behavior compared with coarse or fine threads at large diameters.

Q2: What is the difference between B7 and B7M studs? B7 is a chromium-molybdenum alloy steel grade with standard mechanical properties. B7M is the same base material manufactured with a hardness ceiling (typically ≤ 22 HRC) for sour service per NACE MR0175 / ISO 15156. The two are not interchangeable.

Q3: Can I use zinc-plated studs in sour service? Zinc plating on high-strength sour-service studs is generally restricted. Coating selection must be reviewed against the service and the project's bolting specification, and the base-material hardness limit must still be met.

Q4: Do I need full traceability on every stud? EPC and operator QA/QC typically require heat-number traceability and 3.1 material certificates per lot. The exact requirement is set by the project's quality plan — confirm it before manufacturing.

Q5: What length allowance should I add for the nuts? The stud must extend two to three threads past each nut. Work from flange + gasket + two nut heights + protrusion allowance, and confirm against the actual joint drawing before ordering.

Q6: Are B16.5 stud bolts the same as API bolting? Not the same thing. ASME B16.5 defines flange dimensions and gives minimum bolting recommendations; API 20E/20F define manufacturing, testing, and traceability frameworks for bolting used on API equipment. A project can require both.

---
